High Rise – Five Story Information

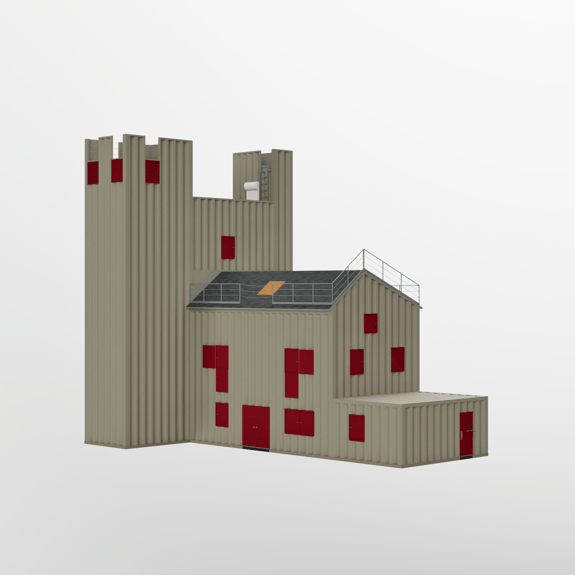

The WHP High Rise Five-Story consists of a 4-story fire training tower with a five-story elevator shaft & a five -story enclosed stair tower, a 2-story residential/industrial unit and a 1-story annex. Features include 12 single windows, 1 double window, 23 single doors, 1 double door and a temperature monitoring system. The TOWER has parapet walls and 8 rappelling anchors on stair tower. The fourth floor is equipped with a live fire burn room. The RESIDENTIAL/INDUSTRIAL section includes a 4’-0” attic space, a gabled roof structure with perimeter welded guardrails, 2 chop-outs and a 2nd floor live fire burn room.The ANNEX houses a third live fire burn room.

Photos may include options not included in standard features.

Details

Technical Specifications (MS Word)

DOWNLOAD

high-rise-5-story-blueprint

View Elevation/Floor Plan (PDF)

VIEW

Building Dimensions

Tower:

20′-9″ W x 11’-8” L x 44′-0″ H

Residential:

21′-11″ W x 35′-0″ L x 24′-0″ H

Annex:

21′-11″ W x 14′-6″ L x 10’-0″ H

Elevator Shaft:

4’-10″ W x 11’-8” L x 54’-0″ H

Stair Tower:

15’-1” W x 11’-8” L x 54’-0″ H



Standard Features

Windows:

12 Single 3′ x 4′ Windows
1 Double 6′ x 4′ Window

Doors:

23 Single Doors 1 Double Door

Burn Rooms:

3

Floor to Floor Height:

10’0″

Stairs/Ladders:

5 Story Exterior Stairs 5 Story Interior Stairs w/Intermediate Landings 2 Vertical Ladders 1 Bilco Hatch 2 Story Interior Stair 2 Story Exterior Stair

Rappel Anchors:

8

Roof Surfaces:

Concrete (Provided by others)

Residential:

Un-equal pitch Gable
